1.概述
是一款多网络制式LTE Cat 4智能模组。 基于高通SDM450平台设计，采用八核Cortex-A53处理器，1.8GHz主频，搭载Android 9操作系统，内部集成高性能图形引擎，可以流畅播放1080p视频，支持双屏显示，支持多路摄像头录入。
可广泛应用于智能零售柜、智能收银机、安防监控、车载设备、贩卖机、物流柜等设备和行业。
2.技术规格
基本特性
| Package | 152 LCC+ 171 LGA |
| Processor | Qualcomm’s® SDM450, ARM® Cortex™-A53 8-core 64-bit CPU up to 1.8GHz, one quad with 512 KB L2 cache,one quad with 512 KB L2 cache |
| GPU | Adreno 506 |
| Memory(Default) | 2GB LPDDR3 RAM;16GB eMMC Flash |
| Dimension (mm) | 43.0*44.0*2.85 |
| Frequency | LTE-FDD: B1/3/5/8 LTE-TDD:B34/38/39/40/41 WCDMA:B1/8 GSM:900/1800MHz |
| WIFI | 2.4G+5G, 802.11a/b/g/n/ac |
| BT | 4.2 BR/EDR/BLE |
| GNSS | GPS/GLONASS/Beidou |
| OS | Android P |
| Power Supply | DC 3.5V～4.2V |
| Weight | About 13.0g |
| Operating Temp | -30°C - +75°C |
| Storage Temp | -40°C - +85°C |
数据传输
| LTE FDD (Mbps) | Max 150(DL)/ 50(UL) |
| LTE TDD (Mbps) | Max 130(DL)/ 30(UL) |
| WCDMA (Mbps) | HSUPA Max 5.76(UL) HSPA+ Max 42(DL) |
| TD-SCDMA (Mbps) | Max 4.2(DL)/ 2.2(UL) |
| CDMA2000 1X/EVDO (Mbps) | Max 3.1 (DL)/ 1.8 (UL) |
| EDGE/GPRS(Kbps) | EDGE:Max 296(DL)/ 236.8(UL) GPRS:Max 107(DL)/ 85.6(UL) |
| WIFI (Mbps) | up to 433 |
视频处理
| Video Encode | 1080P@60fps (H.264/H.265/VP8) |
| Video Decode | 1080P@60fps (H.264/H.265/VP8/VP9) |
接口
| UART/SPI(Mbps) | 3 x UART Up to 4; SPI Up to 50 |
| I2C(Kbps) | Up to 400 for TP/Camera/Sensor |
| USB | 1 x USB2.0 up to 480MbpsUSB 1 x USB3.0 up to 5GbpsUSB support USB OTG(external 5V power supply)USB |
| SDIO | Support SD3.0 protocol; support 4 bit SD card |
| CAM | MIPI_CSI 4lane x 3(Up to 2.1G) Support 3 or 4 cameras Up to 21MP |
| GPIO | 30GPIOs |
| Display | 2 x 4-lane MIPI_DSIup to (1920x1080)@60fps |
| Speaker | 1 x Mono,differential 1W CLASS-D |
| Receiver | 1 x Mono, AB |
| Mic | 2 x analog microphones |
| Handset | 1 x Stereo, single-ended output |
| USIM | 2 x SIM card,support dual-card, dual-standby |
| Keys | Power on/off /Volume up /Volume down /Reset |
| Advantages | 1、Octa-core A53 processor with up to 1.8GHz CPU Clock Speed 2、Support dual-LCD application |
| Applications | Smart Cash Register, Security Monitoring, Mobile POS terminal, Mobile computing, ECR, IVI, New Retailing |
认证
| Regulation | RoHS*/CCC*/SRRC* |
| Operator | NA |
| Industry | NA |
* = 计划/开发中

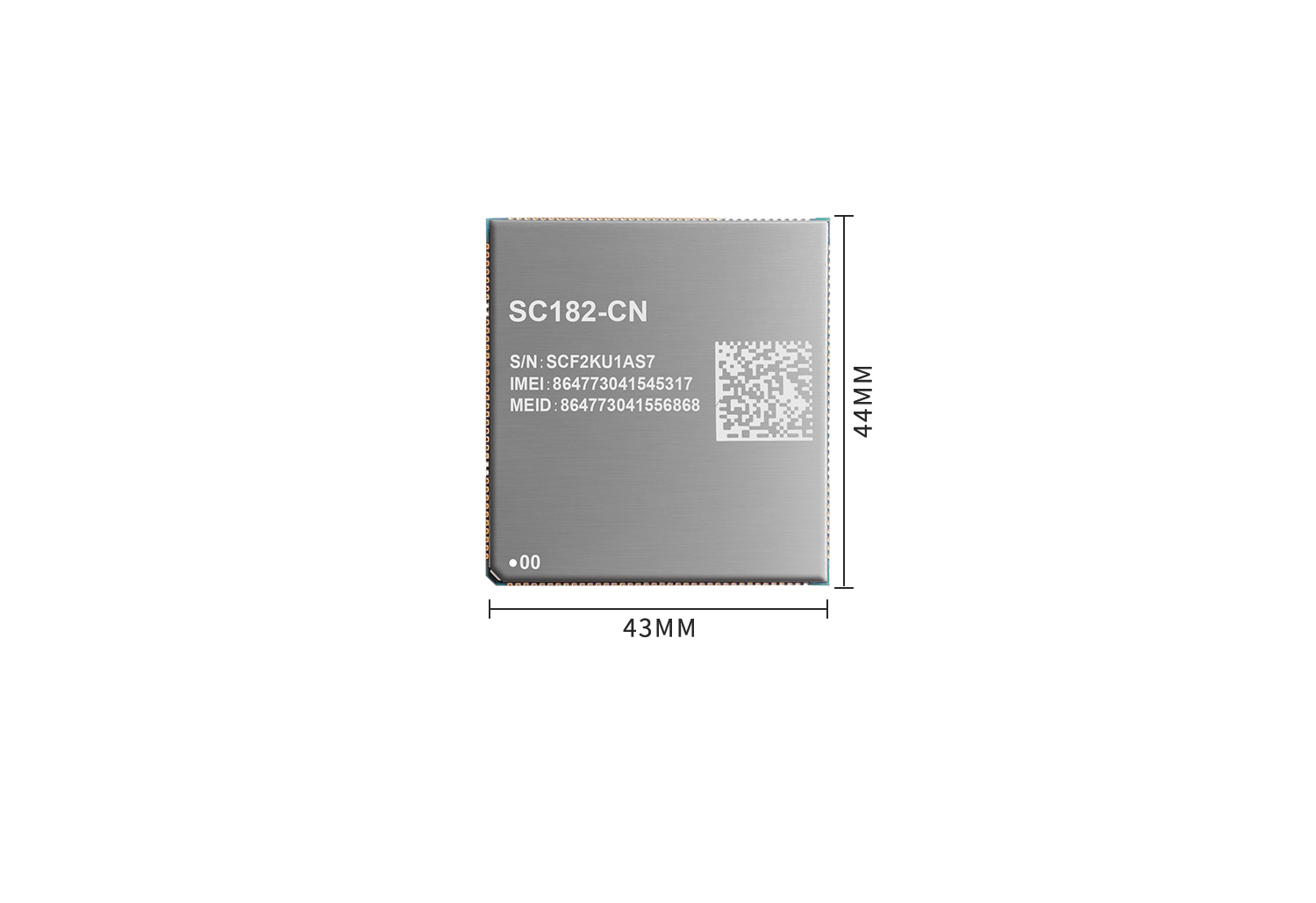

3.产品图片
