CAT1模组：L610-CN MiniPCIe(LTE: B1/3/5/8/34/38/39/40/41)

1.概述

L610-CN MiniPCIe系列产品是一款LTECat1 bis无线通信模组，采用MiniPCIe封装，尺寸为50.8mm*29.85mm*3.4mm。

L610-CN MiniPCIe面向亚洲地区主要运营商频段，另有同系列相同封装产品L610-EUMiniPCIe、L610-LAMiniPCIe分别针对欧洲、拉美地区主要运营商频段。

产品定位覆盖中低速率物联网市场，例如泛支付、共享、工业互联、追踪、车载后装等多种应用场景。为上述各领域客户提供完美高速体验。

L610-CN-62-MiniPCIe-10产品支持LTE、GSM双模通信。同时支持VoLTE、Audio、Camera、LCD、Keypad等功能。

2.技术规格

基本特性

Package
MiniPCIe

Dimension (mm)
50.8 x 29.85 x 3.4

LTE FDD
B1/3/5/8

LTE TDD
B34/38/39/40/41

WCDMA NA

TD-SCDMA
NA

EVDO NA

CDMA2000 1X NA

GSM/GPRS/EDGE 900/1800MHz

Power Supply
3.4V ~ 4.3V (Typical 3.8V)

Operating Temp
-30°C ~ +75°C

传输速率

LTE FDD (Mbps)
10.3(DL)/5.1(UL)

LTE TDD (Mbps)
9.1(DL)/3.1 (UL)

DC-HSPA+(Mbps)
NA

HSPA/HSPA+(Mbps)
NA

UMTS(Kbps) NA

TD-SCDMA (Mbps)
NA

EVDO(Mbps)
NA

CDMA2000 1X(Kbps)
NA

EDGE(Kbps)
NA

GPRS(Kbps)
85.6(DL)/85.6(UL)

功能

WiFi&BlueTooth
Optional

SIM
●

eSIM
NA

eCALL
NA

OpenCPU NA

MUX
●

双卡双待
NA

Jamming Detection
●

USSD
NA

STK
NA

LBS
●

FOTA
DFOTA

OS Drivers
Linux/Windows/Android

GNSS
NA

MMS NA

CSD NA

TTS
Optional

SMS
●

Audio
●

Voice Code
HR/FR/EFR/AMR/Call display/Call forwarding/Call holding/Call waiting and multi party call

Audio Play/Record
●

Protocols
TCP/UDP(S)/HTTP(S)/FTP(S)/IPV4/IPV6/SSL/MQTT/NTP

接口

SIM
x 1, 1.8V/3.0V

USB x 1, USB2.0

PCIe
●

UART
NA

SPI NA

ADC
NA

GPIO
NA

认证

Regulation RoHS/SRRC/CCC/NAL

Operator CTCC/CMCC

Industry NA

* =计划/开发中

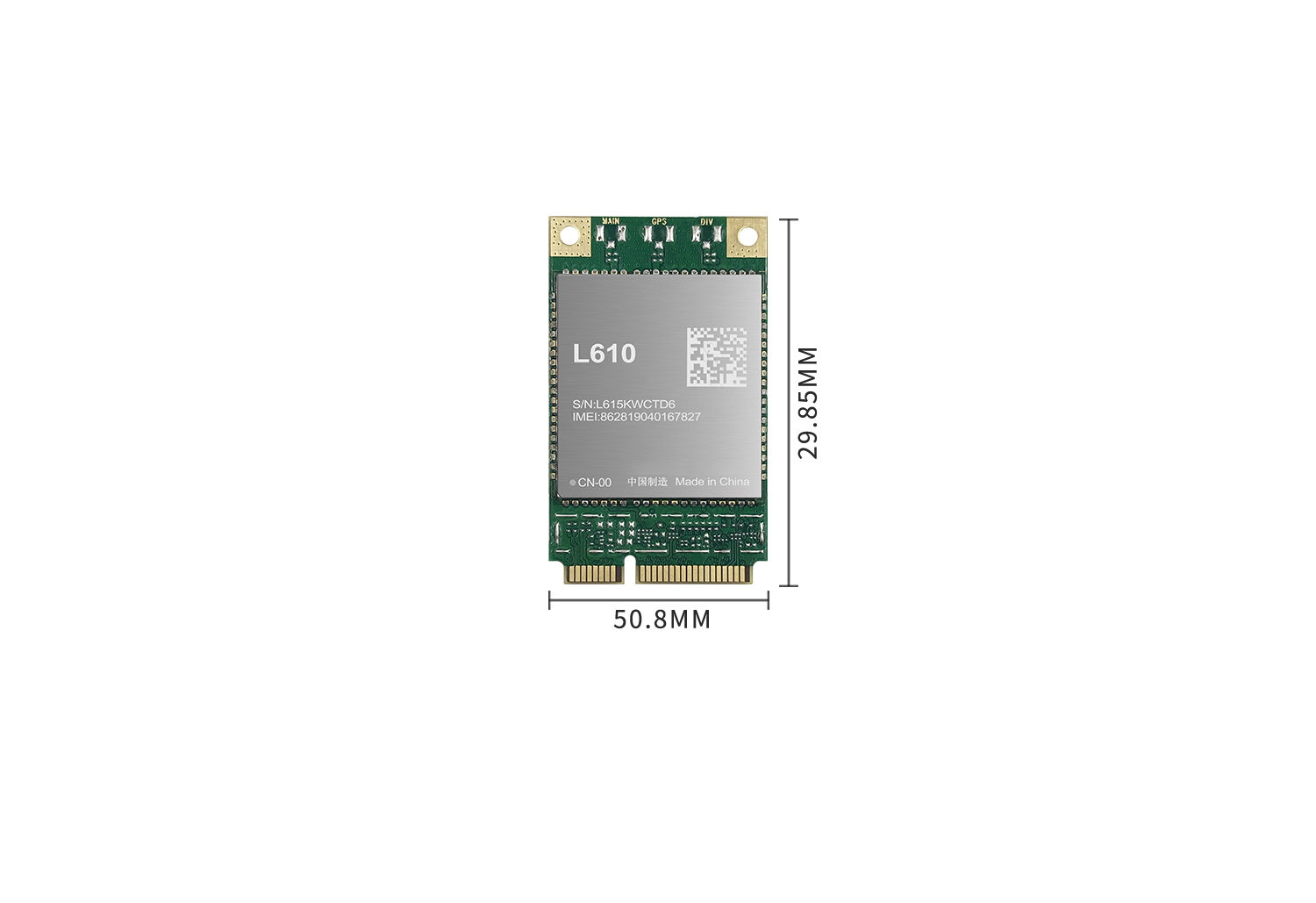

3.产品图片

Package	MiniPCIe
Dimension (mm)	50.8 x 29.85 x 3.4
LTE FDD	B1/3/5/8
LTE TDD	B34/38/39/40/41
WCDMA	NA
TD-SCDMA	NA
EVDO	NA
CDMA2000 1X	NA
GSM/GPRS/EDGE	900/1800MHz
Power Supply	3.4V ~ 4.3V (Typical 3.8V)
Operating Temp	-30°C ~ +75°C

LTE FDD (Mbps)	10.3(DL)/5.1(UL)
LTE TDD (Mbps)	9.1(DL)/3.1 (UL)
DC-HSPA+(Mbps)	NA
HSPA/HSPA+(Mbps)	NA
UMTS(Kbps)	NA
TD-SCDMA (Mbps)	NA
EVDO(Mbps)	NA
CDMA2000 1X(Kbps)	NA
EDGE(Kbps)	NA
GPRS(Kbps)	85.6(DL)/85.6(UL)

WiFi&BlueTooth	Optional
SIM	●
eSIM	NA
eCALL	NA
OpenCPU	NA
MUX	●
双卡双待	NA
Jamming Detection	●
USSD	NA
STK	NA
LBS	●
FOTA	DFOTA
OS Drivers	Linux/Windows/Android
GNSS	NA
MMS	NA
CSD	NA
TTS	Optional
SMS	●
Audio	●
Voice Code	HR/FR/EFR/AMR/Call display/Call forwarding/Call holding/Call waiting and multi party call
Audio Play/Record	●
Protocols	TCP/UDP(S)/HTTP(S)/FTP(S)/IPV4/IPV6/SSL/MQTT/NTP

SIM	x 1, 1.8V/3.0V
USB	x 1, USB2.0
PCIe	●
UART	NA
SPI	NA
ADC	NA
GPIO	NA
