1.概述
智能模组SC665系列是一款多网络制式LTE Cat 4智能模组。基于展锐UIS7862S平台，采用高端八核64位处理器，搭载开放的智能Android操作系统。模组采用LCC+LGA 封装，内部集成高性能图形引擎，可以流畅播放1080p视频，可扩展支持双屏显示，支持多路摄像头录入。
SC665系列支持多种制式的远距离通讯模式和双频Wi-Fi/BT近距离无线传输技术， 支持GNSS无线定位技术，拥有MIPI/ USB/ UART/ SPI/ I2C等多种扩展接口，可外接HD触摸屏，支持前后双摄像头。是无线智能产品核心系统的优选方案。
SC665系列可广泛应用于无线智能支付、智能机器人、智能家居、智慧城市等行业领域，是卓越的全球无线智能产品核心系统解决方案。
2.技术规格
基本特性
| Package | 156 LCC+ 92 LGA |
| Processor | UNISOC's® UIS7862S, Dual-core ARM® Cortex™-A75+Six-core ARM Cortex™-A55,2.0GHz |
| GPU | G52-3EE-2core @850MHz |
| Memory(Default) | 2GB LPDDR4X RAM; 32GB eMMC Flash |
| Dimensions (mm) | 43.5 x 45.0 x 2.85 |
| Frequency | LTE-FDD: B1/3/5/8 LTE-TDD: B34/38/39/40/41 UL CA: B39C/40C/41C DL CA: B1C/3C/39C/40C/41C/3A+3A WCDMA: B1/8 GSM/GPRS/EDGE: 900/1800MHz |
| WiFi | 2.4G+5G, 802.11 a/b/g/n/ac |
| BT | BT5.0 |
| GNSS | GPS/Beidou/GLONASS/Galileo |
| OS | Android Q |
| Power Supply | DC 3.5 ～ 4.2V |
| Weight | About 12.3g |
| Operating Temp | -20°C - +75°C |
| Storage Temp | -40°C ~ +85°C |
传输速率
| LTE FDD (Mbps) | Max 300(DL)/Max 90(UL) |
| LTE TDD (Mbps) | Max 260(DL)/Max 90(UL) |
| WCDMA (Mbps) | HSUPA: Max 11(UL) HSPA+: Max 42(DL) |
| TD-SCDMA (Mbps) | NA |
| CDMA2000 1X/EVDO (Mbps) | NA |
| EDGE/GPRS(Kbps) | EDGE: Max 296(DL)/236.8(UL) GPRS: Max 107(DL)/85.6(UL) |
| WIFI (Mbps) | up to 433 |
视频处理
| Video Encode | 1080p@60fps (H.263/H.264/H.265/MPEG4) |
| Video Decode | 1080p@60fps(H.263/H.264/H.265/MPEG4/VP8/VP9) |
接口
| UART/SPI(Mbps) | 4 x UART Up to 4.6 |
| I2C(Kbps) | 5 x I2C Up to 3.4Mbps |
| USB | 1 x USB2.0 support OTG |
| SDIO | 1 x SDIO 3.0 |
| CAM | MIPI_CSI0 4-lane, 2.5Gbps/lane, up to 32MP MIPI_CSI1 2-lane, 1.6Gbps/lane, up to 8MP MIPI_CSI2 4-lane or 2-lane+2-lane, 2.5Gbps/lane, up to 32MP |
| GPIO | 19GPIOs |
| Display | 1 x 4-lane MIPI_DSI; up to (2400x1080)@60fps |
| Speaker | 1.5W on 8Ω load in Class-D mode |
| Receiver | 1 x Mono, AB |
| Mic | 2 x analog microphones |
| Handset | Stereo CLASS AB |
| USIM | 2 x SIM card, support dual-card, dual-standby |
| Keys | Power on/off/Volume up/Volume down/Reset |
| Advantages | 1、Android Q 2、Support 2*1080P LCD with External FPGA 3、High computation capability, high-end Platform |
| Applications | Smart Cash Register, Security Monitoring, High-end Police or Law Enforcement Equipment, Vehicle-mounted Equipment |
认证
| Regulation | RoHS/CCC/SRRC |
| Operator | NA |
| Industry | NA |
* = 计划/开发中

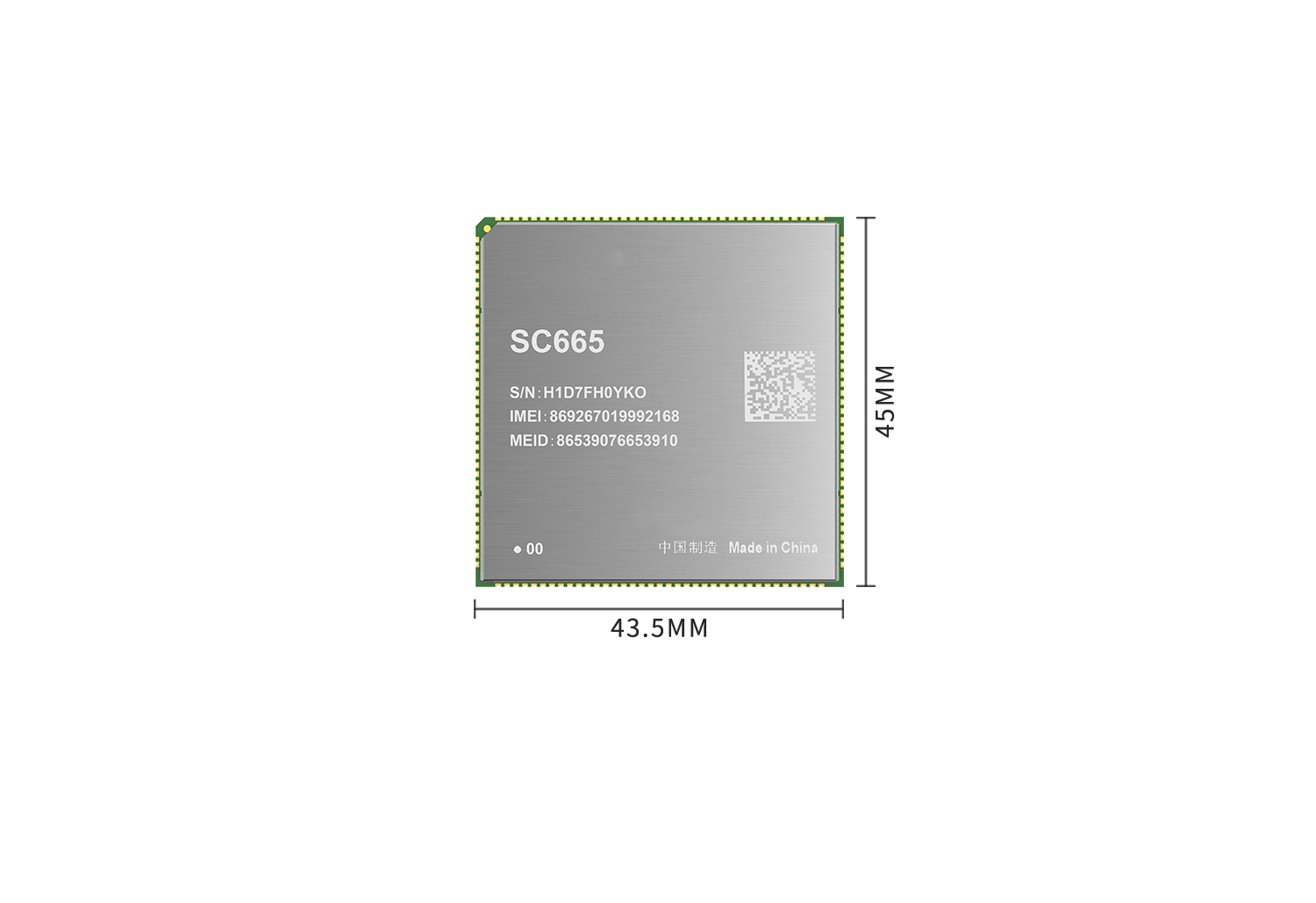

3.产品图片
